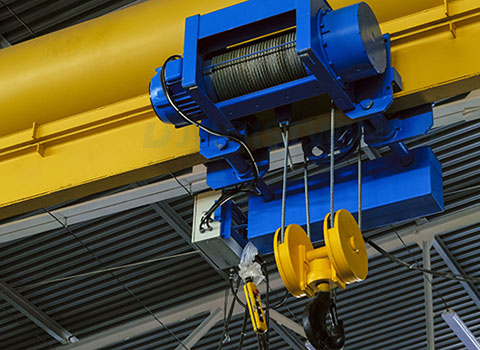

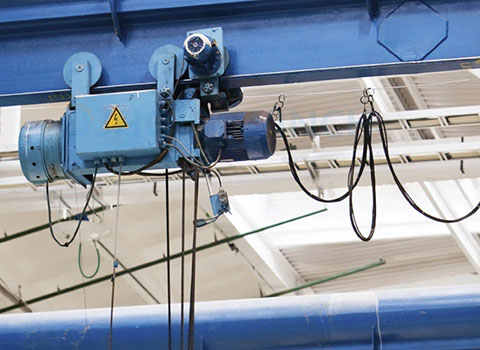

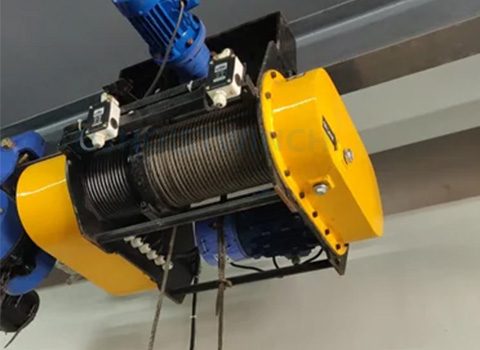

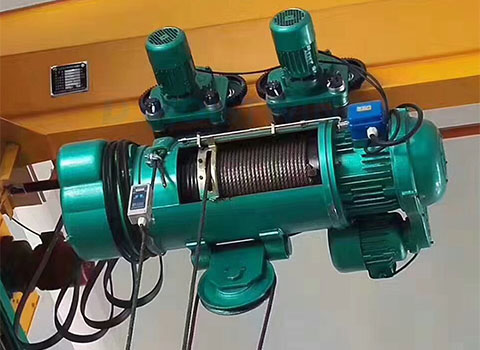

Electric Wire Rope Hoist

An electric wire rope hoist is an efficient and convenient lifting machine that is crucial in various industries. Its unique features allow it to adapt to different working environments and requirements. Whether it's lifting heavy objects, transporting goods, or serving as a key component of production lines, our wire rope hoist is designed to meet your needs. The electric steel wire rope hoist typically consists of a lifting mechanism, an operating mechanism, and an electric control system. The lifting mechanism utilizes a drum to wind the steel wire rope, enabling the lifting of heavy loads. Meanwhile, the operating mechanism is responsible for horizontal movement. Its compact design, small space, ease to install and use in a variety of places. As an experienced manufacturer, Dejun Industrial supplies you with customized products at competitive prices! For more details, please keep reading!

1. High working efficiency: The overhead crane adopts electrical control technology, which can carry materials with stability, high efficiency, and precision, improve production efficiency, and reduce labor costs.

2. Reliable structure: The main structure of overhead cranes consists of a bridge, trolley, hoists, an electric system, etc. Due to its stable structure, it can load heavy materials and is suitable for large logistics transportation and production sites.

3. High reliability: The overhead bridge crane utilizes electrical control mechanical transmission and other advanced technology, with a good performance of stability and reliability. Also, It is less prone to malfunctions during long-term operation and is suitable for long-term use in production sites.

4. Less occupied area and Easy to operate: EOT crane adopts a human-machine interface interactive control system. For operators, that is more convenient and easier. Moreover, Overhead cranes utilize vertical space, allowing for maximum use of floor space. This is especially valuable in crowded or compact work environments.

‌Factory workshop: used for lifting raw materials, finished products, parts, etc. ‌

Construction site: used for lifting building materials, equipment, etc. ‌

Logistics: for the efficient handling of cargo.

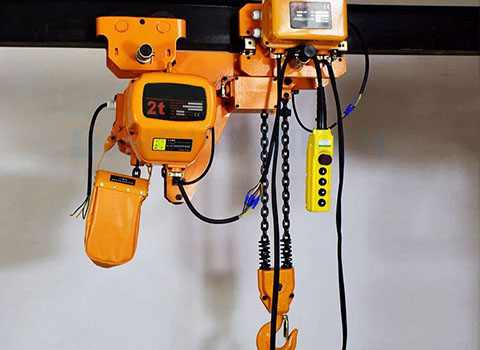

In the market, there are mainly two types of electric hoists: electric chain hoists and wire rope electric hoists. Each type has its unique application scenarios and advantages. Below, we will detail the differences between these two types of electric hoists to help you make a better choice for your needs.

Volume Difference

When the volume and tonnage of the two types of electric hoists are the same, the volume of the electric chain hoist is usually smaller. This is because the chain of the chain hoist is separated from the main unit, overcoming the problem of the large volume of the drum in the wire rope hoist. Especially in cases of high lifting heights, the volume of the wire rope hoist will be significantly larger than that of the chain hoist.

Lifting Height

The wire rope of the wire rope hoist is wound around the drum, which causes elastic deformation. To prevent the wire rope from being subjected to excessive pressure or tension, the diameter of the drum needs to be large enough. In contrast, the links of the chain hoist are connected by hinges and bear tensile force. Therefore, the diameter of the sprocket of the chain hoist is usually smaller, resulting in a smaller hook spacing. On the same height of track, the lifting height of the chain hoist is usually greater than that of the wire rope hoist.

Running Distance

The axis of the running wire rope hoist is parallel to the trolley running track, while the axis of the chain hoist can be installed at a 90° angle to the running track. This allows the chain hoist to have a greater running distance on the same track length. Even if the axis is installed parallel to the running track, due to the smaller axial size of the chain hoist, its running distance is still greater than that of the wire rope hoist. When the lifting height of the wire rope hoist is large, the drum is longer, which further affects its running distance.

Accuracy

When the wire rope hoist lifts, the hook will move horizontally along the axis direction of the hoist due to the axial winding of the wire rope on the drum. The greater the lifting height, the more turns the wire rope makes on the drum, and the greater the horizontal displacement of the hook. In contrast, regardless of the lifting height, the hook of the chain hoist moves up and down along the vertical line of the chain, meaning the hook can be accurately positioned.

Through the above comparisons, you can choose the suitable type of electric hoist based on your specific needs. Whether you are looking for a compact device or one with a high lifting height, you can find a solution that meets your requirements among these two types.

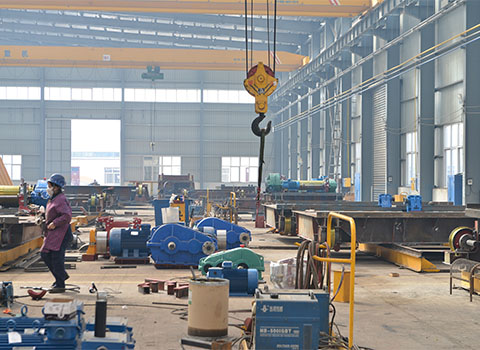

Regarding the electric wire rope hoist manufacturer, many Chinese manufacturers for your reference. Moreover, Dejun Company is your best choice. As a Chinese manufacturer, we are devoted to research and develop high technology lifting hoists for our clients. What's more, we imported advanced production equipment and quality inspection advice at our factory. To provide better service for our clients, we employ highly senior engineers to set up the personalized product solution based on your needs. Besides the wire rope electric hoists, we also produce and export electric chain hoists, electric winches, pneumatic winches, etc. Any needs, please feel free to contact us!

To sum up, the electric wire rope hoist benefits from low energy consumption, less maintenance cost, high working efficiency, etc. As a skilled exporter, we have over 40 years of experience in hoist sales. Our wire rope electric hoist have been sold to over 100 regions and countries all over the world. Moreover, we received good feedbacks from our clients. If you also need to purchase an electric wire rope hoist, please send us your requirements such as lifting height and weight, etc. We will customize it for you. Also, you are welcome to visit our factory.
